Very high speed production! These machines can form round wire or strip.
Complex springs and wire forms with press forming by multiple slides for very high speed and highly precise,
repeatable measurements. Processes such as chamfering, punching and assembly can be in-lined to avoid costly
secondary operations.
Designed for high speed production. Contact us with the spring(s) or form(s) you would like to make!
Wire Diameter
Ø 0.1~1.0 mm
Ø .0039~.03937"
Max Strip Width
Ø 10 mm
Ø .3937"

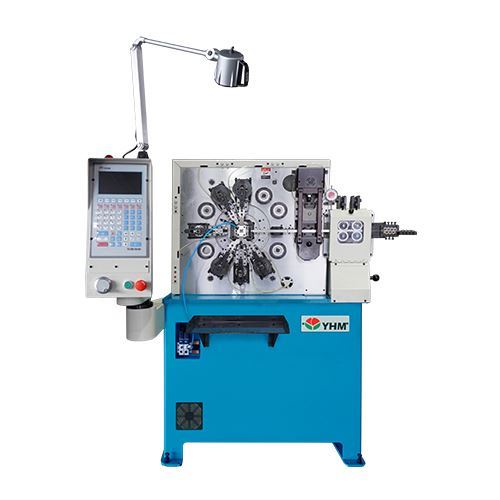

Model FB-210
Product Features
Suitable for production of precise wire and strip forms at high speed.
Stamped by slides, parts dimension are precise and repeatable.
Lower material consumption, compared with press machine.
Simpler tooling design is easy to maintain.
Production speed is higher than spring machine, and dimensions are more accurate as well.
Modular design gives more flexibility in production, feeding direction can be changed according to production requirements.
Feeding by feed rolls for wire or gripper for strip.
• • • • • •
Wire Diameter
Ø 0.4~2.0mm
Ø .0158~..0787"
Max Strip Width
Ø 20 mm
Ø .7874"

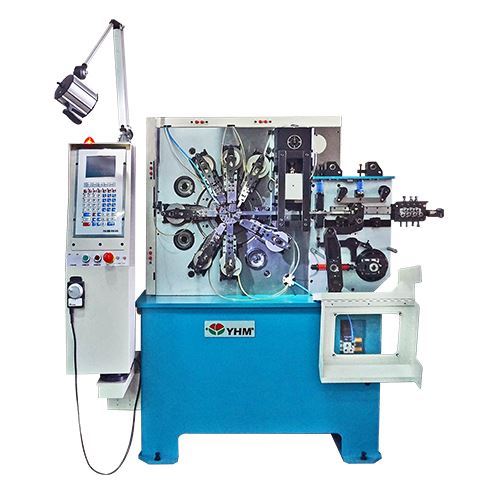

Model FB-220
Product Features
Suitable for production of precise wire and strip forms at high speed.
Stamped by slides, parts dimension are precise and repeatable.
Lower material consumption, compared with press machine.
Simpler tooling design is easy to maintain.
Production speed is higher than spring machine, and dimensions are more accurate as well.
Modular design gives more flexibility in production, feeding direction can be changed according to production requirements.
Feeding by feed rolls for wire or gripper for strip.
Wire Diameter
Ø 0.6~3.0mm
Ø .0236~.1181"
Max Strip Width
Ø 30 mm
Ø 1.1811"
Model FB-230
Product Features
Suitable for production of precise wire and strip forms at high speed.
Stamped by slides, parts dimension are precise and repeatable.
Lower material consumption, compared with press machine.
Simpler tooling design is easy to maintain.
Production speed is higher than spring machine, and dimensions are more accurate as well.
Modular design gives more flexibility in production, feeding direction can be changed according to production requirements.
Feeding by feed rolls for wire or gripper for strip.
• • • • • •
Wire Diameter
Ø 2.5~6.0mm
Ø .100~.240"
Model FM-60
Product Features
Suitable for production of precise wire and strip forms at high speed.
Stamped by slides, parts dimension are precise and repeatable.
Lower material consumption, compared with press machine.
Simpler tooling design is easy to maintain.
Production speed is higher than spring machine, and dimensions are more accurate as well.
Modular design gives more flexibility in production, feeding direction can be changed according to production requirements.
Feeding by feed rolls for wire or gripper for strip.
