Our most versatile machines! Coiling combined with multiple slide forming allows you to form nearly unlimited shapes. Compression, shaped compression, torsion, extension, motor, oval magazine spring, and other springs and forms. Long or short shaped legs. Up to eight forming slides along with independant rotating wire and the quill are controlded by the computer to allow easy set up and programs. Contact us with the spring(s) or form(s) you would like to make!





Wire Diameter
Ø 0.05~0.6 mm
Ø .00196~.0236"

Max Coil Diameter
Ø 20 mm
Ø .07874"


Picture of MF-603
<H3>YHM</H3>

Model MF-603

Product Features

  1. Suitable for production of complicated torsion or compression springs.
  2. It can make 3D forming; spring dimension and shape can be changed simply by adjusting the program.
  3. Machine axes can be increased as per demand, maximum to 13 axes (11 forming slides).
  4. Two servo spinners can be added to make additional wire forming or spring leg treatments.

•       •       •       •       •       •



Wire Diameter
Ø 0.4~2.0mm
Ø .0157~.0787"

Max Coil Diameter
Ø 30 mm
Ø 1.1811"


Picture of MF-620
<H3>YHM</H3>

Model MF-620

Product Features

  1. Suitable for production of complicated torsion or compression springs.
  2. It can make 3D forming; spring dimension and shape can be changed simply by adjusting the program.
  3. Machine axes can be increased as per demand, maximum to 13 axes (11 forming slides).
  4. Two servo spinners can be added to make additional wire forming or spring leg treatments.

•       •       •       •       •       •



Wire Diameter
Ø 0.8~3.0 mm
Ø .03149~.1181"



Picture of MCF-30
<H3>Okuno</H3>

Model MCF-30

Product Features

  1. Suitable for production of complicated torsion or compression springs.
  2. It can make 3D forming; spring dimension and shape can be changed simply by adjusting the program.
  3. Machine axes can be increased as per demand, maximum to 10 axes (8 forming slides).
  4. Two servo spinners can be added to make additional wire forming or spring leg treatments.

•       •       •       •       •       •



Wire Diameter
Ø 3.0~8.0 mm
Ø .1181~.3149"

Max Coil Diameter
Ø 180 mm
Ø 7.086"

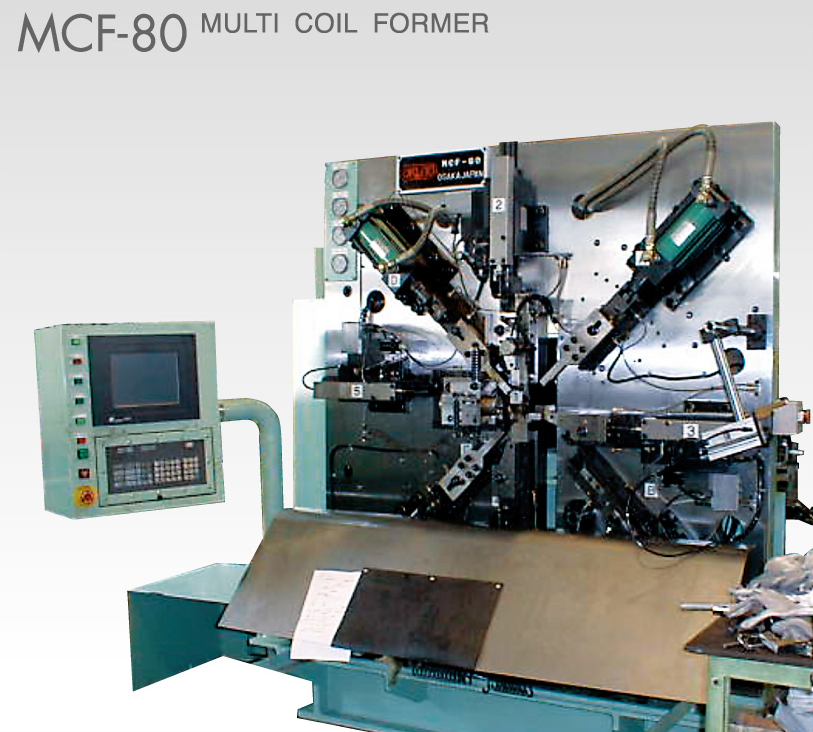

Picture of MCF-80
<H3>Okuno</H3>

Model MCF-80

Product Features

  1. Suitable for production of complicated torsion or compression springs.
  2. It can make 3D forming; spring dimension and shape can be changed simply by adjusting the program.
  3. Machine axes can be increased as per demand, maximum to 10 axes (8 forming slides).
  4. Two servo spinners can be added to make additional wire forming or spring leg treatments.

•       •       •       •       •       •
