Vertical torsion formers make springs by winding around a vertical spindle. Good for making short to long torsion
springs and multi-wound layered springs. Exact I.D. And O.D. due to spindle winding. Can work with soft or hard
wire with exacting results.
Designed for high speed production. Contact us with the spring(s) you would like to make!
Wire Diameter
Ø 0.1~1.0 mm
Ø .0039~.03937"
Max O.D.
Ø 15 mm
Ø .5905"
Model TF-310
Product Features
Shaft winding system makes for consistent diameter, particularly suitable softer wire coiling, like magnetic wire or nickel chromium wire.
With tool stamping and bending, spring angle is consistent and more accurate than with a touch probe; meanwhile the high output is suitable for mass production.
Pitch is controlled by servo which makes set up easier and shortens set up time.
• • • • • •
Wire Diameter
Ø 0.4~2.0mm
Ø .0158~.0787"
Max Spring Diameter
Ø 25 mm
Ø .9842"
Model TF-320
Product Features
Shaft winding system makes for consistent diameter, particularly suitable softer wire coiling, like magnetic wire or nickel chromium wire.
With tool stamping and bending, spring angle is consistent and more accurate than with a touch probe; meanwhile the high output is suitable for mass production.
Pitch is controlled by servo which makes set up easier and shortens set up time.
• • • • • •
Wire Diameter
Ø 1.0~3.2mm
Ø .063~.126"
Max Coil Diameter
Ø 35 mm
Ø 1.3779"

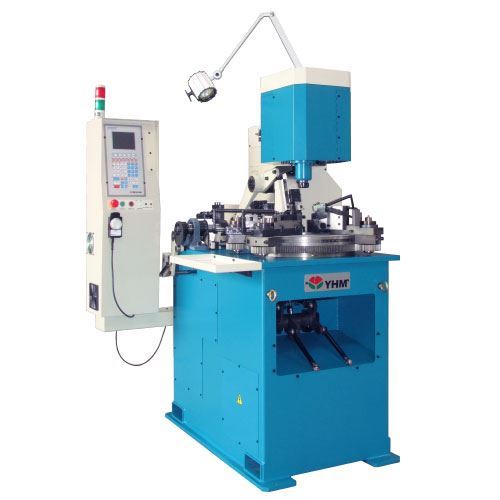

Model TF-330
Product Features
Shaft winding system makes for consistent diameter, particularly suitable softer wire coiling, like magnetic wire or nickel chromium wire.
With tool stamping and bending, spring angle is consistent and more accurate than with a touch probe; meanwhile the high output is suitable for mass production.
Pitch is controlled by servo which makes set up easier and shortens set up time.
