Forming Machines

horizontal rule

These are multi-slide press forming machines which can produce small wire springs, brazing rings and other spring and wire forms.  The FM forming machines are also capable of parts assembly.

Forming machines slides can be laid out in either a radial layout for small complex parts or a vertical layout for long length parts production.

Basic spring forms which can be made by the FM spring former.

Basic spring figure which can be made by FM  *:Optional Device
Flat Wire Spring W Torsion Spring* Formed Wire Spring


Special Spring
Forming Processes(1)		 . Special Spring
Forming Processes(2)		 . Special Spring
Forming Processes(3)



horizontal rule


Item FM-25 FM-30 FM-40S FM-60
Wire Capacity f0.4-2.5mm f0.8-3.0mm f1.5-3.0mm f2.5-6.0mm
Max. wire
feed length		 135mm 250mm 700mm 300mm
Punching
press power		 1.5t 8.5t ----- 15.0t
Thrust force
of slide		 1.0t 1.3t 1.3t 4.5t
* Production
speed		 40-160pcs/min 30-120pcs/min 9-36pcs/min 20-80pcs/min
Main motor 1.5kw 4p 2.2kw 4p 2.2kw 4p 7.5kw 4p
Machine
dimension		 1500(W)
870(L)
1665(H)		 1930(W)
1200(L)
1760(H)		 2150(W)
1000(L)
1600(H)		 2650(W)
1700(L)
1900(H)

*Production Speed (60Hz).
/AC Servo Motor is used for the wire feed axis on FM-40 type machine.



horizontal rule


FM-25
  Wire Capacity f0.4-2.5mm
Max. wire
feed length		 135mm
Punching
press power		 1.5t
Thrust force
of slide		 1.0t
Production
speed		 40-160pcs/min (60Hz)
Main motor 1.5kw 4p
Machine
dimension		 1500(W)x870(L)x1665(H)

horizontal rule


FM-30
Wire Capacity 0.80 - 3.00mm
Max. wire
feed length		 250mm
Punching
press power		 8.5t
Thrust force
of slide		 1.3t
Production
speed		 30-120pcs/min (60Hz)
Main motor 2.2kw 4p
Machine
dimension		 1930(W)x1200(L)x1760(H)

horizontal rule

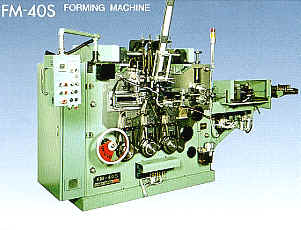

FM-40S
Wire Capacity f1.5-3.0mm
Max. wire
feed length		 700mm
Punching
press power		 -----
Thrust force
of slide		 1.3t
Production
speed		 9-36pcs/min (60Hz)
Main motor 2.2kw 4p
Machine
dimension		 2150(W)x1000(L)x1600(H)

horizontal rule

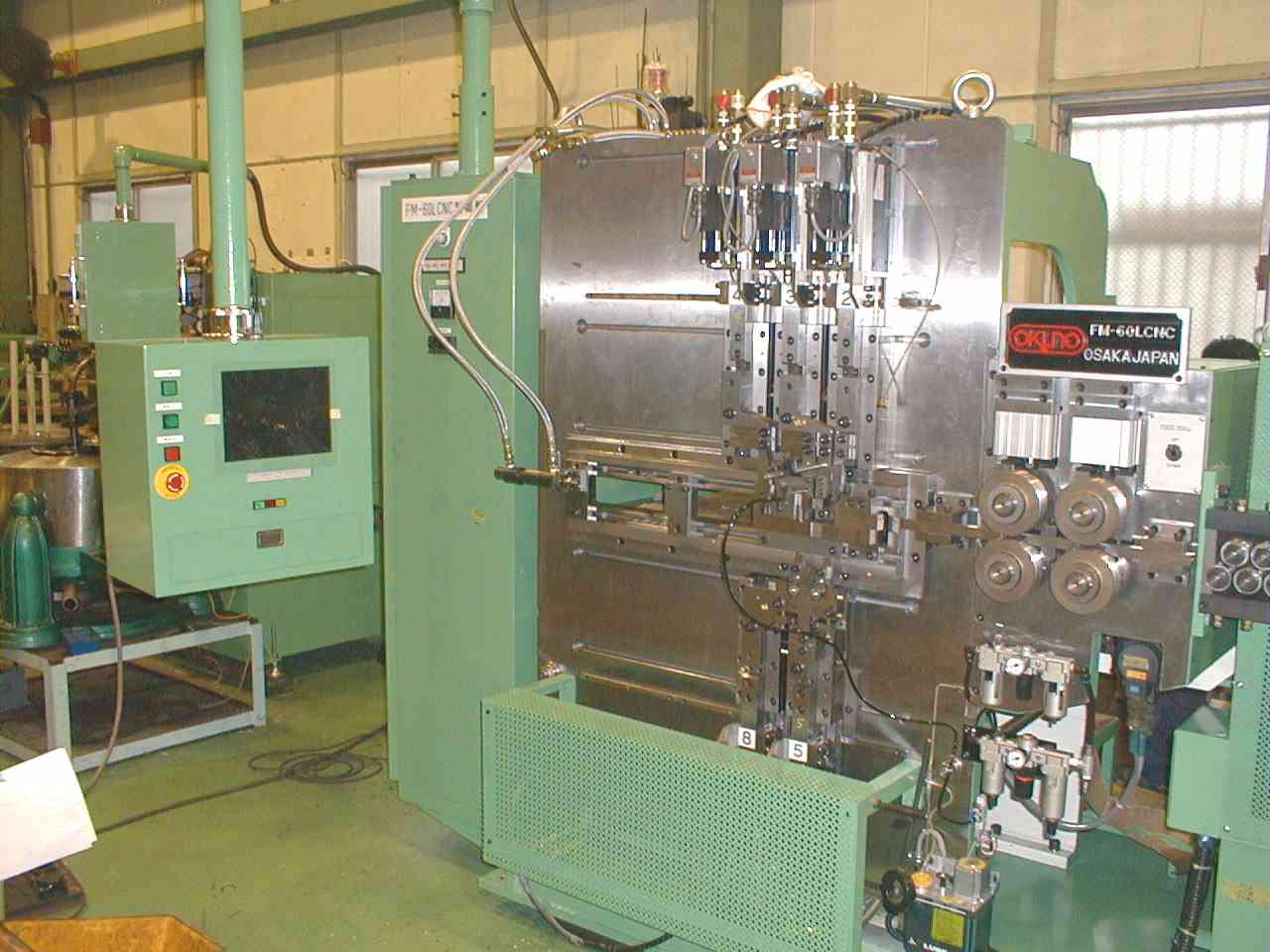

FM-60
Wire Capacity f2.5-6.0mm
Max. wire
feed length		 300mm
Punching
press power		 15.0t
Thrust force
of slide		 1.3t
Production
speed		 20-80pcs/min (60Hz)
Main motor 7.5kw 4p
Machine
dimension		 2650(W)x1700(L)x1900(H)


horizontal rule
