Motor Spring Making Machines..

horizontal rule

MSW machines were developed to form motor springs used in seat belt, cord retractor, and other similar mechanisms.  They can even form a retainer ring around the motor spring as part of the process. These machines can be integrated into an automated forming line which includes packaging or assembly operations. (Reference:MSC)

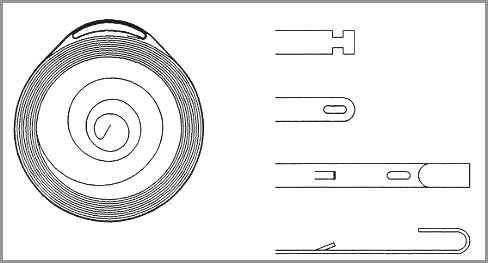

Basic spring figure which can be made by MSW

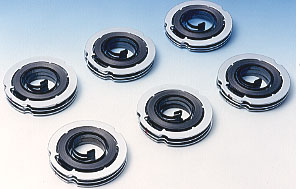

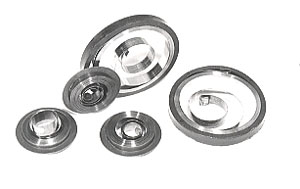

Motor Spring
(Starter, Clock)

Products



horizontal rule


Item MSC-15 MSW-15
Material size
capacity
0.2-0.6mm(thickness)
3.0-15.0mm(width)
0.2-0.6mm(thickness)
3.0-15.0mm(width)
Max.wire
feed length
10000mm 5000mm
Capa.of high
frequency annealr
5.0kw 5.0kw
Wire feed
motor
3.0kw 3.0kw
End forming
motor
2.2kw 2.2kw
Winding
motor
----- 0.6kw
Machine
dimension
3000(W)x1200(L)x1900(H) 3600(W)x1400(L)x1700(H)

horizontal rule

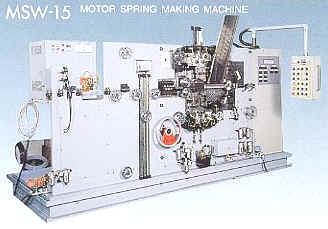

MSW-15 (Winding Style)
This style is suitable for making Starting Motor Spring which is used for toys and so on.
Both ends annealing system and can / ring insertion system are available.
Material size
capacity
0.2-0.6mm(thickness)
3.0-15.0mm(width)
Max.wire
feed length
5000mm
Capa.of high
frequency annealr
5.0kw
Wire feed
motor
3.0kw
End forming
motor
2.2kw
Winding
motor
0.6kw
Machine
dimension
3600(W)x1400(L)x1700(H)

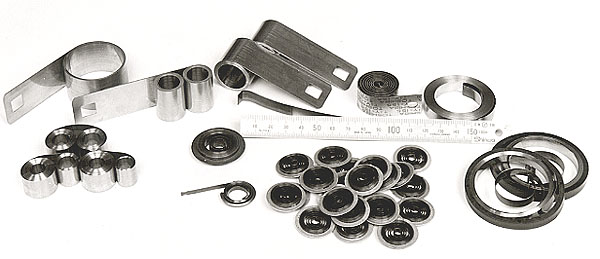

   Typical shapes that can be processed
