Oval Coil Formers..

horizontal rule

These are specialized machines used to form oval coils.  They can produce coils non-stop at super-high production speeds when equipped with our patented tooling.  Polygon coils can also be produced at high speeds with special tools and control data programming.

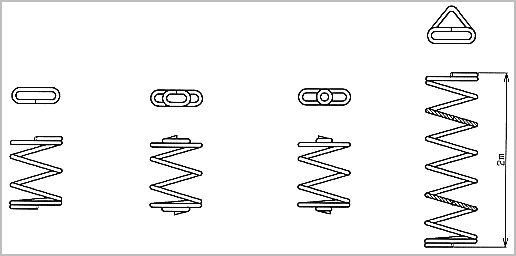

Basic spring figure which can be made by OCF
Oval Coil Spring

Product Pictures

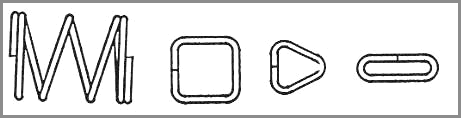

Basic spring figure which can be made by OCF
Oval Coil Spring





horizontal rule


Item OCF-10S OCF-20S OCF-30S
Wire diameter
to be used		 f0.3-1.0mm f0.6-2.0mm f0.8-3.0mm
Forming capacity
Radius part Max.
Radius part Min.
Straight part Max.

f35.0mm
fD=f30.0mm
fD=3d
30mm

f50.0mm
fD=f50.0mm
fD=3d
40mm

f50.0mm
fD=f50.0mm
fD=3d
50mm
Wire feeding
speed		 24m/min. 45m/min. 45m/min.
Accuracy of
wire feeding		 0.01mm 0.01mm 0.01mm
RPM of
forming die		 750rpm(Max.) 1500rpm(Max.) 1500rpm(Max.)
AC servo motor W.feed axis
               Pitch axis
               Die axis
               Bending axis

200w
200w
500w
(100w)

2.90kw
0.77kw
2.90kw
(200W)

4.40kw
0.77kw
4.40kw
(200w)
Machine
dimension		 850(W)
1350(L)
1500(H)		 1200(W)
1800(L)
1700(H)		 1200(W)
1800(L)
1700(H)
Installation
space (ref)		 3.0mx2.0m(min.) 2.5mx3.5m(min.) 2.5mx3.5m(min.)

horizontal rule


OCF-10S
Wire diameter
to be used		 f0.3-1.0mm
Forming capacity
Radius part Max.
Radius part Min.
Straight part Max.

f35.0mm
fD=f30.0mm
fD=3d
30mm
Wire feeding
speed		 24m/min.
Accuracy of
wire feeding		 0.01mm
RPM of
forming die		 750rpm(Max.)
AC servo motor W. feed axis
               Pitch axis
               Die axis
               Bending axis

200w
200w
500w
(100w)
Machine
dimension		 850(W)
1350(L)
1500(H)
Installation
space (ref)		 3.0mx2.0m(min.)

horizontal rule

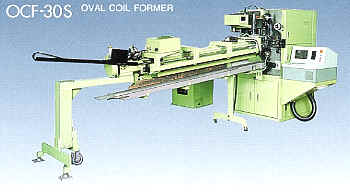

OCF-30S
Wire diameter
to be used		 0.8`3.0mm
Forming capacity
Radius part Max.
Radius part Min.
Straight part Max.

f50.0mm

fD=f50.0mm

fD=3d

50mm
Wire feeding
speed		 45m/min.
Accuracy of
wire feeding		 0.01mm
RPM of
forming die		 1500rpm(Max.)
AC servo motor W. feed axis
               Pitch axis
               Die axis
               Bending axis

4.40kw
0.77kw
4.40kw
(200w)
Machine
dimension		 1500(W)
1800(L)
1700(H)
Installation
space (ref)		 2.5mx3.5m(min.)
