Flat Ring Making Machines

horizontal rule

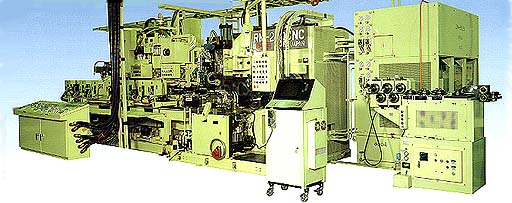

These machines can form snap rings ,wave rings, wave springs, piston rings and other types of spring forms which must be made from shaped wire.  They produce not only round forms, but also elliptical and free form rings with wire feed tolerances up to 0.1mm.(Reference:RMF-200CNC)

Basic spring figure which can be made by RMF      *:Option Device
Ring Flat Ring
(Snap Ring)		 Wave Spring* Welded Ring

 Products 1     Products 2    Products 3



horizontal rule


Item RMF-16 RMF-30 RMF-50 RMF-80
Sectional area of
wire to be used		 2.0mm² 7.0mm² 20.0mm² 50.0mm²
Max.coiling
outer diameter		 f30.0mm f80.0mm f120.0mm f160.0mm
Cutting power 0.3t 1.0t 3.0t 5.0t
Max.wire
feed length		 100mm 280mm 400mm 700mm
* Production
speed		 43-290pcs/min 18-74pcs/min 8-88pcs/min 3-61pcs/min
Main motor 0.75kw 4p 2.20kw 4p 5.50kw 6p 7.50kw 4p
Machine
dimension		 950(W)
1100(L)
1400(H)		 1065(W)
1550(L)
1850(H)		 2000(W)
2000(L)
2000(H)		 2100(W)
2000(L)
2150(H)

* Production Speed (60Hz)

Item RMF-30DS4 RMF-50DS4 RMF-80DS4
Sectional area of
wire to be used		 7.0mm² 20.0mm² 50.0mm²
Max.coiling
outer diameter		 f120.0mm f160.0mm f200.0mm
Cutting power 3.0t 7.8t 12.0t
Max.wire
feed length		 Free Free Free
Accuracy of
wire feed length		 0.01mm 0.01mm 0.01mm
Wire feeding
speed		 100m/min.(Max.) 90m/min.(Max.) 80m/min.(Max.)
Oil motor 3.7kw 4p 5.5kw 4p 7.5kw 4p
Wire feed motor 3.0kw 4.4kw 6.0kw
* Roundness
correcting
pin motor		 0.3kw 0.9kw 2.0kw
+ Cutter
(Upper side)		 Hydraulic servo
cylinder		 Hydraulic servo
cylinder		 Hydraulic servo
cylinder
- Cutter
(Lower side)		 Hydraulic servo
cylinder		 Hydraulic servo
cylinder		 Hydraulic servo
cylinder
Machine
dimension		 2400(W)
1500(L)
1800(H)		 2800(W)
1400(L)
2000(H)		 2700(W)
1650(L)
2100(H)
/ RMF-##DS Type...# is changed to the normal cylinder, + and - are eliminated.
/ RMF-##DS2 Type...# is changed to the normal cylinder, - are eliminated.

horizontal rule

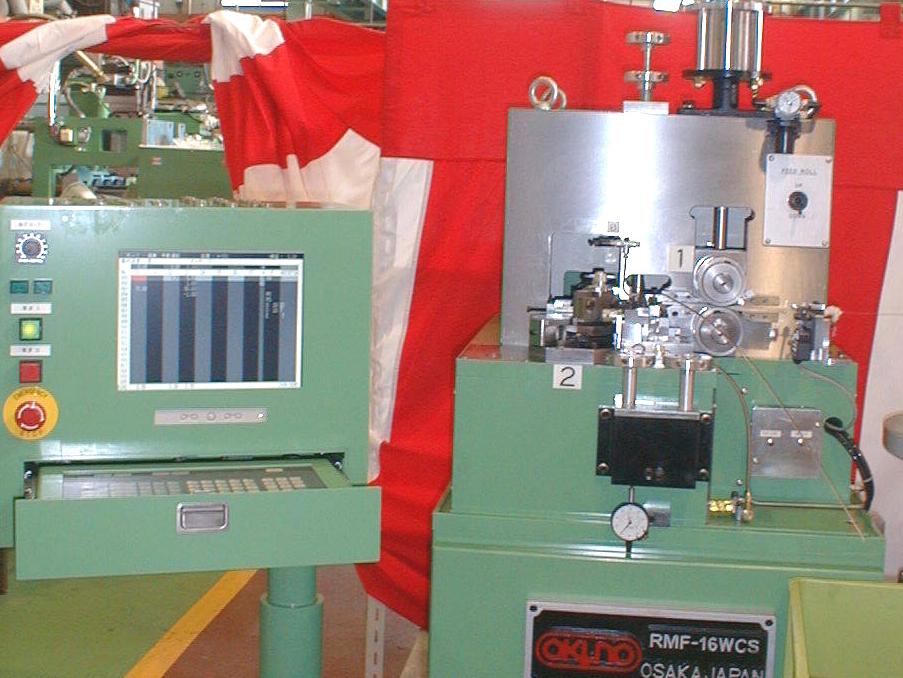

RMF-16
Sectional area of
wire to be used		 2.0mm²
Max. coiling
outer diameter		 f30.0mm
Cutting power 0.3t
Max. wire
feed length		 100mm
Production speed 43-290pcs/min (60Hz)
Main motor 0.75kw 4p
Machine
dimension		 950(W)x1100(L)x1400(H)

horizontal rule


RMF-30DS
Sectional area of
wire to be used		 7.0mm²
Max. coiling
outer diameter		 f120.0mm
Cutting power 3.0t
Max. wire
feed length		 Free
Accuracy of
wire feed length		 0.01mm
Wire feeding
speed		 100m/min. (Max.)
Oil motor 3.7kw 4p
Wire feed motor 3.0kw 4p
Roundness
correcting
pin motor		 0.3kw
Cutter
(Upper side)		 Hydraulic servo
cylinder
Cutter
(Lower side)		 Hydraulic servo
cylinder
Machine
dimension		 2400(W)x1500(L)x1800(H)

horizontal rule

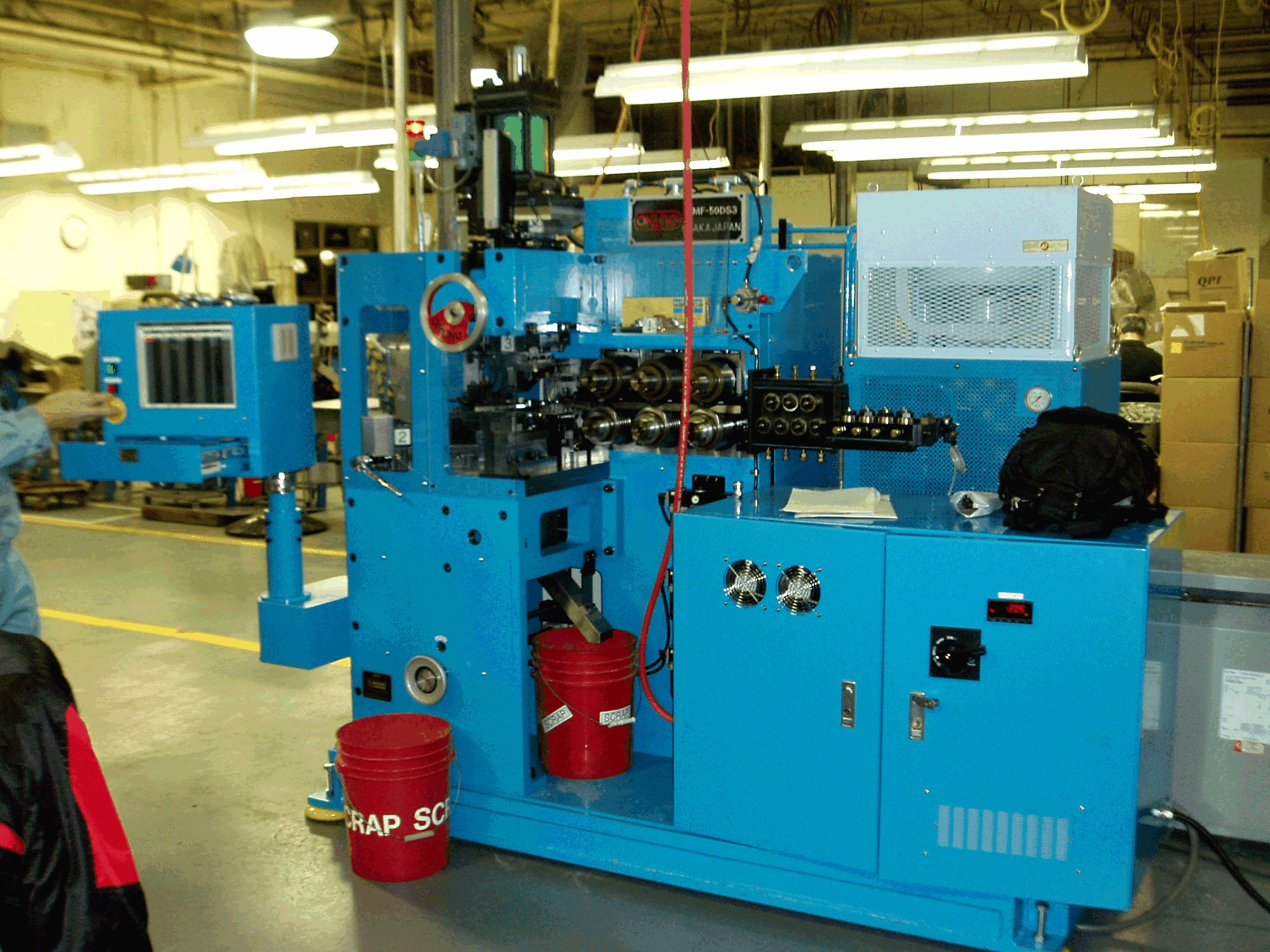

RMF-50DS4
Sectional area of
wire to be used		 20.0mm²
Max.coiling
outer diameter		 200.0mm
Cutting power 12t
Max.wire
feed length		 Free
Accuracy of
wire feed length		 0.01mm
Wire feeding
speed		 90m/min. (Max.)
Oil motor 5.5kw 4p
Wire feed motor 4.4kw 4p
Roundness
correcting
pin motor		 0.9kw
Cutter
(Upper side)		 Hydraulic servo
cylinder
Cutter
(Lower side)		 Hydraulic servo
cylinder
Machine
dimension		 2800(W)x1400(L)x2000(H)

horizontal rule


RMF-80DS3
Sectional area of
wire to be used		 50.0mm²
Max.coiling
outer diameter		 f200.0mm
Cutting power 12.0t
Max.wire
feed length		 Free
Accuracy of
wire feed length		 0.01mm
Wire feeding
speed		 80m/min.(Max.)
Oil motor 7.5kw 4p
Wire feed motor 6.0kw 4p
Roundness
correcting
pin motor		 2.0kw
Cutter
(Upper side)		 Hydraulic servo
cylinder
Cutter
(Lower side)		 Hydraulic servo
cylinder
Machine
dimension		 2700(W)x1650(L)x2100(H)

horizontal rule


RMF-120
Sectional area of
wire to be used		 120?²
Max.coiling
outer diameter		 f350.0mm
Cutting power 20.0t
Max.wire
feed length		 Free
Accuracy of
wire feed length		 0.01mm
Wire feeding
speed		 80m/min.(Max.)
Oil motor 11.0kw 4p
Wire feed motor 6.0kw 4p
Roundness
correcting
pin motor		 2.0kw
Cutter
(Upper side)		 Hydraulic servo
cylinder
Cutter
(Lower side)		 Hydraulic servo
cylinder
Machine
dimension		 2300(W)x2600(L)x2200(H)

horizontal rule


RMF-200
Sectional area of
wire to be used		 200²
Max.coiling
outer diameter		 f350.0mm
Cutting power 24.0t
Max.wire
feed length		 Free
Accuracy of
wire feed length		 0.01mm
Wire feeding
speed		 80m/min.(Max.)
Oil motor 7.5kw 4p
Wire feed motor 6.0kw 4p
Roundness
correcting
pin motor		 2.0kw
Cutter
(Upper side)		 Hydraulic servo
cylinder
Cutter
(Lower side)		 Hydraulic servo
cylinder
Machine
dimension		 2500(W)x2600(L)x2300(H)

horizontal rule
