These machines make flat rings and multi-turn rings with or without jog for flatness. These same machines
can make wave springs at high speed. From very small to material of 300mm squared, these machines are the answer
to your ring and wave spring needs. Additional processes such as welding can be added to avoid costly
secondary operations.
Designed for high speed production. Contact us with the rings(s) or wave spring(s) you would like to make!
Max Wire Width
Ø 3.0 mm
Ø .1181"
Max Wire Thickness
Ø 1.0 mm
Ø .0394"

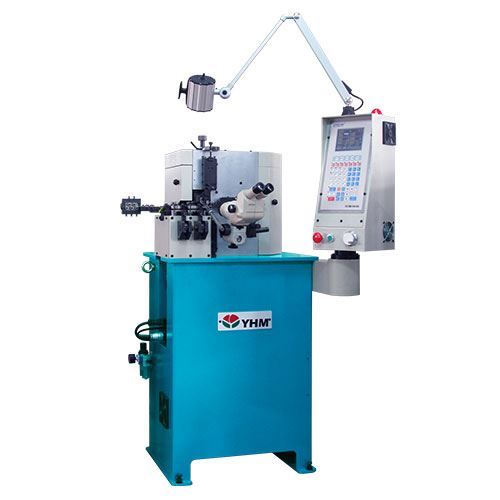

Model WSF-1
Product Features
Cutting by stamping, cutting shape can be changed by stamping tools.
Suitable for making all kinds of snap rings and retaining rings.
With wave spring forming attachment, this machine can produce wave spring at high speed.
• • • • • •
Max Wire Width
Ø 3.0mm
Ø .1181"
Max Wire Thickness
Ø 1.0 mm
Ø .0394"

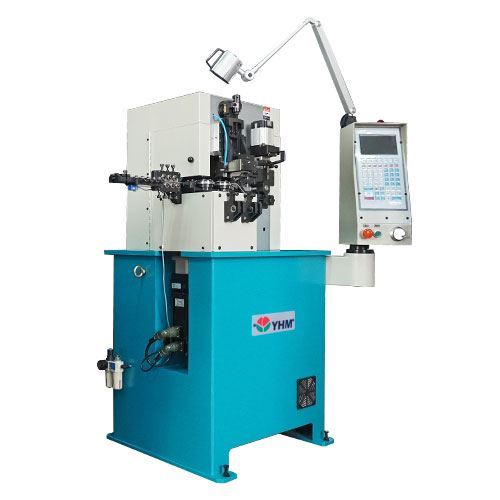

Model PR-13
Product Features
Cutting by stamping, cutting shape can be changed by stamping tools.
Suitable for making all kinds of snap rings and retaining rings.
With wave spring forming attachment, this machine can produce wave spring at high speed.
• • • • • •
Max Wire Width
Ø 4.0mm
Ø .1575"
Max Wire Thickness
Ø 2.0 mm
Ø .0787"
Model PR-24
Product Features
Cutting by stamping, cutting shape can be changed by stamping tools.
Suitable for making all kinds of snap rings and retaining rings.
With wave spring forming attachment, this machine can produce wave spring at high speed.
• • • • • •
Max Wire Width
Ø 6.0 mm
Ø .2362"
Max Wire Thickness
Ø 3.0 mm
Ø .1181"
Model PR-36
Product Features
Cutting by stamping, cutting shape can be changed by stamping tools.
Suitable for making all kinds of snap rings and retaining rings.
With wave spring forming attachment, this machine can produce wave spring in high speed.
• • • • • •
Wire Cross Section
Ø 20.0 mm2
Ø .0310 in sq
Max Coil Diameter
Ø 120 mm
Ø 4.7244"
Model RMFC-50
Product Features
These machines can form snap rings, wave rings, wave springs, piston rings and other types of spring foms which must be made from shaped wire.
They produce not only round forms, but also elliptical and free form rings .
• • • • • •
Wire Sectional Area
Ø 50 mm2
Ø .0775 in sq
Max Coil Diameter
Ø 300 mm
Ø 11.8110"
Model RMFC-80
Product Features
These machines can form snap rings, wave rings, wave springs, piston rings and other types of spring foms which must be made from shaped wire.
They produce not only round forms, but also elliptical and free form rings .
• • • • • •
Wire Diameter
Ø 120.0 mm2
Ø .1860 in sq
Max Coil Diameter
Ø 350 mm
Ø 13.7795"
Model RMFC-120
Product Features
These machines can form snap rings, wave rings, wave springs, piston rings and other types of spring foms which must be made from shaped wire.
They produce not only round forms, but also elliptical and free form rings .
Wire Diameter
Ø 300.0 mm2
Ø .4650 in sq
Max Coil Diameter
Ø 350 mm
Ø 13.7795"
Model RMFC-200
Product Features
These machines can form snap rings, wave rings, wave springs, piston rings and other types of spring foms which must be made from shaped wire.
They produce not only round forms, but also elliptical and free form rings .
