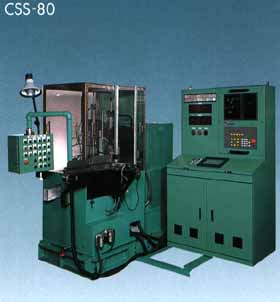

Compression Setting Load Testing Machine
Valve springs, clutch springs, and other types of springs
used for heavy duty applications in which a long service life is required.
This machine applies two or three full compression settings after
which a load test is conducted in order to detect defective pieces.
Wire dia. f2.0-7.5mm
Coil dia. f10-50mm
Spring
free length
20-70mm
Processing
speed
approx.1.5sec./pcs
Turn table
test pieces
12
Compression
setting
Hydraulic
servo cylinder
Compression
setting load
300kg(Max.)
Load
testing
Hydraulic
servo cylinder
Load test
range
500kg(Max.)
Power
consumption
4.2kw,3-phase motor
200/200v,50/60Hz
Machine
dimension
1700(W)x2400(L)x2200(H)
