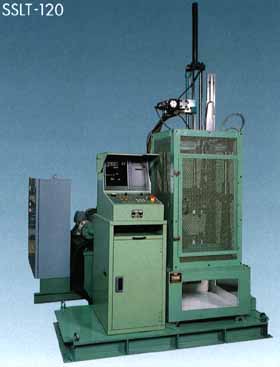

Fatigue And Load Tester
This machine can detect compression fatigue by measuring
the spring's collapse acceleration under load.
Also, as a load tester, it can measure and provide
a record of spring free length
wire dia. f70-200mm
Spring
free length		 100-400mm
Load
application		 Hydraulic
servo cylinder
Load measuring
range		 5000kg(Max.)
Power
consumption		 15.0kw,3-phase motor
200/200v,50/60Hz
Machine
dimension		 2150(W)x1750(L)x2830(H)



horizontal rule

Other Testing Machines
Compression Setting Load Testing Machine
Universal Tester
