These machines can coil round or shaped (square, rectangular, ovoid) wire. Make compression, shaped compression,
oval magazine springs, round rings, control tubes, motor springs, oval coils, wire forms, torsion springs
and more.
Designed for high speed production and easy set up. Contact us with the spring(s) you would like to make!
Wire Diameter
Ø 0.1~0.8 mm
Ø .0039~.0315"
Max Coil Diameter
Ø 20 mm
Ø .07874"

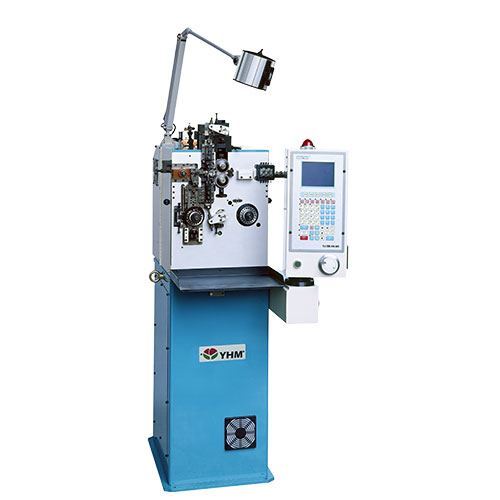

Model CT-208
Product Features
A multi-functional machine which can produce fine wire compression springs, torsion springs and extension springs.
Wide applications, including pen springs, battery springs, magazine springs, spiral springs, hair springs, zig zag springs, dental brace, fuse, extension springs, bi-metal springs, filaments, heater springs, wire formings, strip forming and other kinds of special springs.
Coiling Point moves in 3-D to allow for especially complex micro torsion springs or special torsion springs.
More precise and more stable than any other torsion spring machine on market and it is particularly suitable for producing micro torsion springs or special torsion springs.
• • • • • •
Wire Diameter
Ø 0.15~1.0 mm
Ø .0059~.03937"
Max Coil Diameter
Ø 20 mm
Ø .07874"

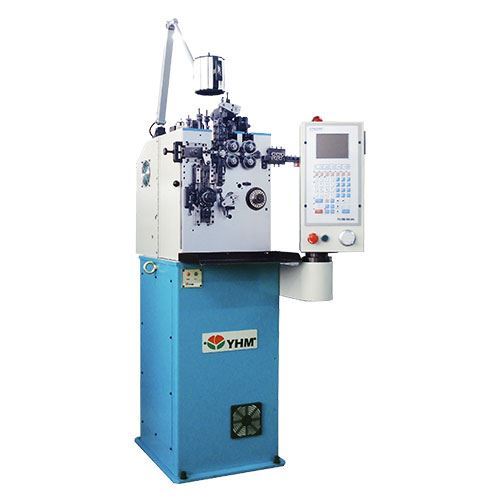

Model CT-210
Product Features
A multi-functional machine which can produce compression springs, torsion springs and extension springs.
2 sets of feed rollers which makes feed pressure steady and more suitable to form soft wire, like resistance wire or springs with a small spring index.
Wide applications, including pen springs, battery springs, magazine springs, spiral springs, hair springs, zig zag springs, dental brace, fuse, extension springs, bi-metal springs, filaments, heater springs, wire formings, strip forming and other kinds of special springs.
Coiling Point moves in 3-D to allow for especially complex micro torsion springs or special torsion springs.
More precise and more stable than any other torsion spring machine on market and it is particularly suitable for producing micro torsion springs or special torsion springs.
• • • • • •
Wire Diameter
Ø 0.1~1.0mm
Ø .0039~.0393"
Max Coil Diameter
Ø 20 mm
Ø .7874"

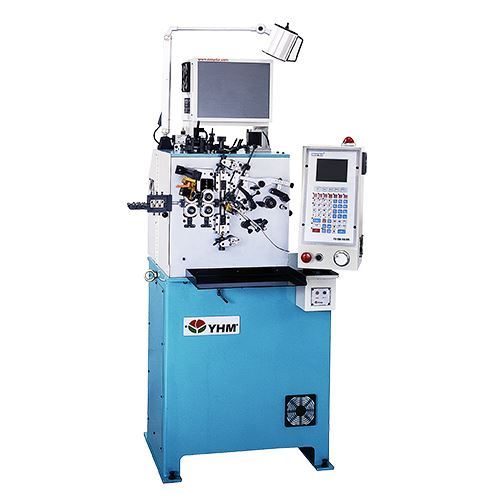

Model CF-310
Product Features
For producing small compression springs at high speed, for example: helical, conical, hourglass, barrel type springs.
Two pairs of feed rollers, which makes feed pressure steady and beneficial for coiling of small index(=2), such as rearview mirror cable.
Both soft wire, like resistance wire, and hard wire, like CrSi alloy wire, can be coiled
Three-axis are servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program. It is especially suitable for set up of complicated compression springs and greatly shortens set up time.
Tool treatment technology allows the production speed to be increased by 30~50% and tool life can be increased as well.
Complete peripheral equipment available, such as stereomicroscope, spring holder and CCD profile magnifier.
Unlimited free length.
• • • • • •
Wire Diameter
Ø 0.4~2.0mm
Ø .0158~.0787"
Max Coil Diameter
Ø 40 mm
Ø 1.574"
Model CF-320
Product Features
For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
Three-axis servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program. It is especially suitable for set up complicated compression springs and greatly shortens set up time.
Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
Tool treatment technology is available for customer's choice, the production speed can be increased by 30~50% and tool life can be increased as well.
Complete peripheral equipment, such as spring holder and CCD profile magnifier.
• • • • • •
Wire Diameter
Ø 0.4~3.2 mm
Ø .0158~.126"
Max Coil Diameter
Ø 60 mm
Ø 2.062"

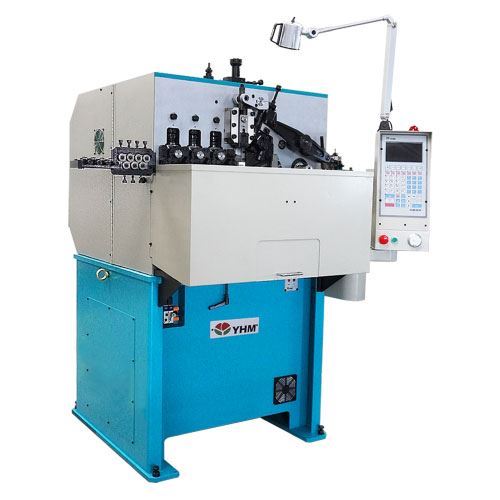

Model CF-330
Product Features
For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
With three pairs of feed rolls, which makes feed pressure steady and beneficial to coil spring of small index.
Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
Three-axis servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program,which is especially suitable for set up complicated compression springs and it greatly shortens set up time.
Completed production peripheral equipment for CF series compression spring former.This series provides completed production peripheral equipment, such as stereomicroscopes for setting up the machine, spring supporters for producing long compression spring, CCD profile magnifier for monitoring production, and probe gauge to inspect and ensure quality. Standard tools are also available for compression spring machines. Our latest tech for tools: UVw Surface Treatment brings spring production to a greater stability level.
Complete peripheral equipment, such as spring holder and CCD profile magnifier.
• • • • • •
Wire Diameter
Ø 2.0~5.0 mm
Ø .0787~.1968"
Max Coil Diameter
Ø 75 mm
Ø 2.9527"
Model CM-50
Product Features
For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
With three pairs of feed rolls, which makes feed pressure steady and beneficial to coil spring of small index.
Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
Four-axes servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program,which is especially suitable for set up complicated compression springs and it greatly shortens set up time.
Completed production peripheral equipment for CM series compression spring former.This series provides completed production peripheral equipment, such as stereomicroscopes for setting up the machine, spring supporters for producing long compression spring, CCD profile magnifier for monitoring production, and probe gauge to inspect and ensure quality. Standard tools are also available for compression spring machines.
Custom automation available per specification.
• • • • • •
Wire Diameter
Ø 3.0~8.0 mm
Ø .1181~.3149"
Max Coil Diameter
Ø 90 mm
Ø 3.5433"
Model CM-80
Product Features
For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
With three pairs of feed rolls, which makes feed pressure steady and beneficial to coil spring of small index.
Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
Three-axis servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program,which is especially suitable for set up complicated compression springs and it greatly shortens set up time.
Completed production peripheral equipment for CM series compression spring former.This series provides completed production peripheral equipment, such as stereomicroscopes for setting up the machine, spring supporters for producing long compression spring, CCD profile magnifier for monitoring production, and probe gauge to inspect and ensure quality. Standard tools are also available for compression spring machines.
Custom automation available per specification.
• • • • • •
Wire Diameter
Ø 6.0~12.0 mm
Ø .2362~.4724"
Max Coil Diameter
Ø 140 mm
Ø 5.5118"
Model CM-120
Product Features
For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
With three pairs of feed rolls, which makes feed pressure steady and beneficial to coil spring of small index.
Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
Four-axes servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program,which is especially suitable for set up complicated compression springs and it greatly shortens set up time.
Completed production peripheral equipment for CM series compression spring former.This series provides completed production peripheral equipment, such as stereomicroscopes for setting up the machine, spring supporters for producing long compression spring, CCD profile magnifier for monitoring production, and probe gauge to inspect and ensure quality. Standard tools are also available for compression spring machines.
Custom automation available per specification.
• • • • • •
Wire Diameter
Ø 10.0~20.0 mm
Ø .3937~.7874"
Max Coil Diameter
Ø 180 mm
Ø 7.0866"
Model CM-200
Product Features
For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
With five pairs of feed rolls, which makes feed pressure steady and beneficial for coiling heavy springs.
Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
Four-axes servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program,which is especially suitable for set up complicated compression springs and it greatly shortens set up time.
Completed production peripheral equipment for CM series compression spring former.This series provides completed production peripheral equipment, such as stereomicroscopes for setting up the machine, spring supporters for producing long compression spring, CCD profile magnifier for monitoring production, and probe gauge to inspect and ensure quality. Standard tools are also available for compression spring machines.
